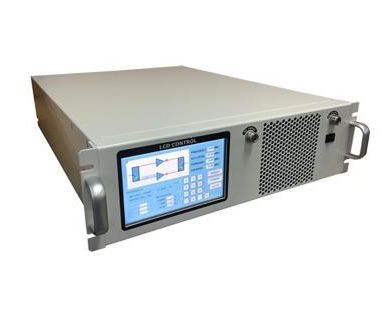

S0360BDP25/10 300 – 6000 MHz / 25&10Watts
ELECTRICAL SPECIFICATIONS @ 100 or 220 VAC, 25°C, 50Ω System



Parameter                                          Note                                               Specifications
Operating Frequency Band 1 BW 300 - 2500MHz
Band 2 2500 - 6000MHz
Output Power Band 1 PSAT Min. 25Watt
Band 2 Min. 10Watt
Power Gain Band 1 GP Typ. 47dB
Band 2 Typ. 43dB
Power Gain Flatness DGP Max. ±3.0dB
Input Power for Rated PSAT PIN Typ. 0dBm
Input Impedance Ω 50 ohm
Input VSWR S11 Max. -10dB
Harmonics @ Psat 2nd Har Typ. -20 dBc
3rd Typ. -20 dBc
Third Order Intercept Point IP3 Typ. +46 dBm
Spurious Signal Spur Typ. -70dBc
Power Consumption @ Psat PD Typ. 500 Watt
Primary Power 　 100-220VAC, 50/60Hz, Single phase



MECHANICAL SPECIFICATIONS
Parameter Value Note
Dimensions, W x D x H 482.6 x 656.5 x 132.6 (3U) mm
Weight TBD kg
RF Connector Input Type-N, Female Front
RF Connector Output Type-N, Female Front
Forward /Reverse Coupling 40 ± 2.0dB 　
RF Coupling Port Type Type-N, Female Front
Cooling Built-in internal forced air cooling system -
ENVIRONMENTAL CHARACTERISTICS
Parameter Symbol Specifications Unit
Operating Ambient Temperature TA 0 ~ +50 °C
Non-operating Temperature TSTG -20 ~ +75 °C
PROTECTIONS & LIMITS
Parameter Specifications Unit
Input RF drive level without damage +5 dBm Max
Thermal Overload 65°C shutdown 　
