20 – 520 MHz / 80 Watts-SU205BP80
20 – 520 MHz / 80 Watts

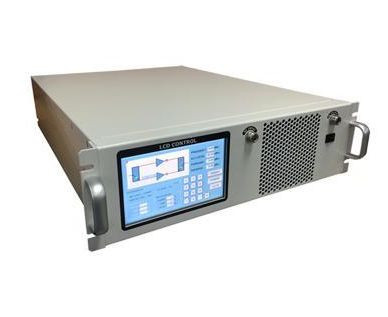

SU205BP80 20 – 520 MHz / 80 Watts
ELECTRICAL SPECIFICATIONS @ 220 VAC, 25°C, 50Ω System
| Parameter Note Specifications | |||||||||||
| Operating Frequency | BW | 20 – 520MHz | |||||||||
| Output Power | PSAT | Min. 80Watt | |||||||||
| Power Gain | GP | Typ. 51.5dB | |||||||||
| Power Gain Flatness | DGP | Max. ±1.5dB | |||||||||
| Input Power for Rated PSAT | PIN | Typ. 0dBm | |||||||||
| Input Impedance | Ω | 50 ohm | |||||||||
| Input VSWR | S11 | Max. -10dB | |||||||||
| Harmonics @ POUT = 80W | 2ND/3RD | Typ. -30 dBc | |||||||||
| Third Order Intercept Point | IP3 | Typ. +54 dBm | |||||||||
| Spurious Signal | Spur | Max. -70dBc | |||||||||
| Power Consumption @ Psat | PD | Typ. 1000 Watt | |||||||||
| Primary Power | 200-260VAC, 50/60Hz, Single phase | ||||||||||
| Sampling Value | FWD | Samp | Typ. 55dB ±3.0dB | ||||||||
| RVS | |||||||||||
MECHANICAL SPECIFICATIONS
| Parameter | Value | Note | |||||||||
| Dimensions, W x D x H | 482.8 x 620 x 132 (3U) | mm | |||||||||
| Weight | TBD | kg | |||||||||
| RF Connector Input | Type-N, Female | Rear | |||||||||
| RF Connector Output | Type-N, Female | Rear | |||||||||
| Sampling Port Connector | SMA, Female | Rear | |||||||||
| Cooling | Built-in internal forced air cooling system | - | |||||||||
ENVIRONMENTAL CHARACTERISTICS
| Parameter | Symbol | Specifications | Unit | ||||||||
| Operating Ambient Temperature | TA | 0 ~ +50 | °C | ||||||||
| Non-operating Temperature | TSTG | -20 ~ +75 | °C | ||||||||
PROTECTIONS & LIMITS
|
Specifications, Value | Unit | |||||||||||||
| Input RF drive level without damage | +5 dBm | Max | |||||||||||||
| Thermal Overload | 65°C shutdown | ||||||||||||||
